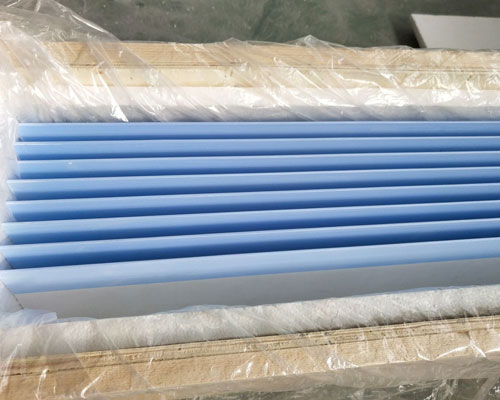

The aluminum casting tip is located in front of the rolls in the rolling equipment of the aluminum alloy field, and is used to guide the aluminum alloy.
The liquid aluminum melt enters the casting nozzle from the feed port at the rear end, and then is sent out from the discharge port at the front end and enters the roll, where it is cooled by the roll and rolled into a cast billet.
Generally, the width of the cast-rolled billet is determined by the outlet width of the casting nozzle and tips. In order to improve equipment utilization and reduce operating costs, the width of plates produced by ordinary casting and rolling equipment is relatively wide, generally reaching 1450mm-1600mm.
For cast-rolled billets with a width of less than 800mm, if traditional equipment structures and production methods are used for production, the unit output will be reduced.
Dubai Aluminum introduced the use of Casting Tip in the foundry. The headbox is used as a reservoir to reduce level fluctuations caused by fluid flow.
In addition, the large front box is opened with an overflow to keep the water at a certain level and to ensure a constant flow field of the casting nozzle.
Because in double-roll casting, after the aluminum melt flows out from the tip of the feeder, it directly enters a pair of inner cavities, and is solidified and casted with a casting roll filled with circulating cooling water. The aluminum in the crystallization zone and the casting roll have an effect on the aluminum liquid flowing out of the nozzle of the casting mold.
The rear box is connected to the outlet of the casting nozzle. The height of the rear baffle of the rear box exceeds the height of the casting nozzle, which can not only play a damping effect, but also make the fluid exceed the inlet of the casting nozzle.
